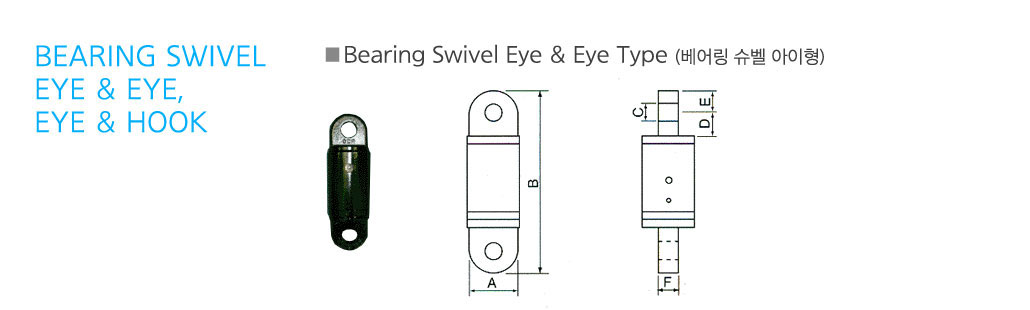

S.W.L

Dimensions(mm)

Weight(kg)

A

B

C

D

E

F

1TON

49

158

17

23

21

13

1.35

2TON

68

250

28

36

34

30

3.5

3TON

78

283

28

36

34

30

6.5

5TON

88

288

31

36

34

30

8.1

8TON

108

368

41

46.5

45.5

40

15.2

10TON

118

430

50

58

52

45

19.1

20TON

170

570

53

85

71

65

25.2

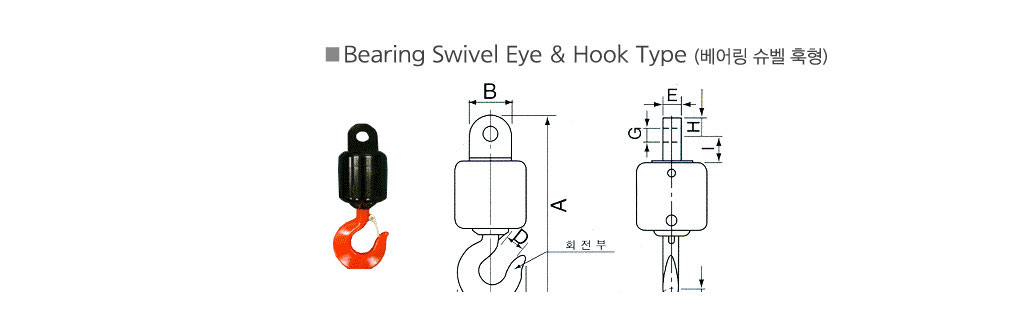

S.W.L

Dimensions(mm)

Weight(kg)

A

B

C

D

E

F

G

H

I

J

1TON

270

63

90

29

24

20

21

25.5

30.5

30

6.6

2TON

290

68

110

32

27

26

22.5

25

32

40

10.1

3TON

390

78

150

42

30

35

31

34

36

55

17.3

5TON

435

78

175

48

30

47

31

34

36

55

26.9
