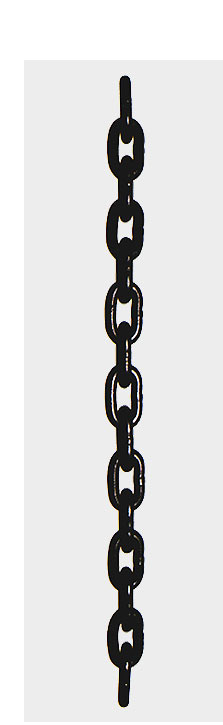

| Hoist Chain - Grade T |
| ITEM |

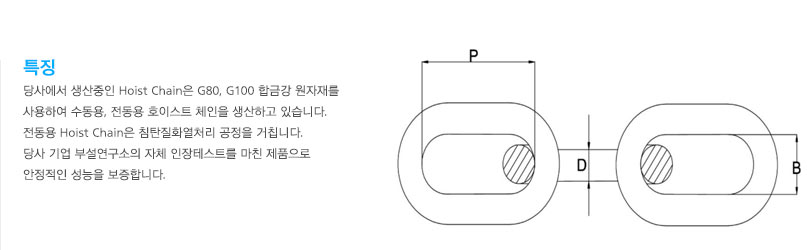

Chain Size D(mm) |
Pitch P (mm) |
Outside Width B(mm) |
Weight (kg/m) |
S.W.L (ton) |
Breaking Load (ton) |
| HCT-6.3 |
6.3 |
19 |
7.9 |
0.86 |
1.27 |
5.1 |
| HCT-7.1 |
7.1 |
21 |
8.9 |
1.1 |
1.6 |
6.5 |
| HCT-7.9 |
7.9 |
23 |
9.8 |
1.38 |
2 |
8 |
| HCT-9.5 |
9.5 |
28.6 |
12 |
1.96 |
3.1 |
12.2 |
| HCT-11.1 |
11.1 |
33.3 |
14 |
2.69 |
3.9 |
15.8 |
| HCT-11.2 |
11.2 |
34 |
14 |
2.73 |
4 |
16.1 |
| HCT-12.5 |
12.5 |
38 |
15.6 |
3.4 |
5.1 |
20.4 |
| Hoist Chain - Grade DAT |
| ITEM |
Chain Size D(mm) |
Pitch P (mm) |
Outside Width B(mm) |
Weight (kg/m) |
S.W.L (ton) |
Breaking Load (ton) |
| HCT-6 |
6.3 |
19 |
7.9 |
0.86 |
1 |
5.1 |
| HCT-7.1 |
7.1 |
21 |
8.9 |
1.1 |
1.3 |
6.5 |
| HCT-7.9 |
7.9 |
23 |
9.8 |
1.38 |
1.6 |
8 |
| HCT-9.5 |
9.5 |
28.6 |
12 |
1.96 |
2.45 |
12.2 |
| HCT-11.1 |
11.1 |
33.3 |
14 |
2.69 |
3.16 |
15.8 |
| HCT-11.2 |
11.2 |
34 |
14 |
2.73 |
3.22 |
16.1 |
| HCT-12.5 |
12.5 |
38 |
15.6 |
3.4 |
4.08 |
20.4 |
|
|
|
. |
|
